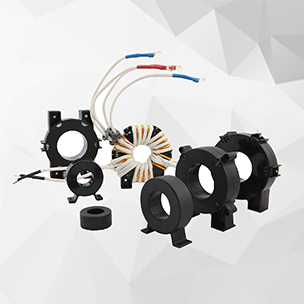

与铁氧体相比，纳米晶具有更高的居里温度，适用工作温度范围宽，热稳定性好。纳米晶具有更高的磁导率和更高的饱和磁感应强度，可以大幅减少铁芯体积和重量，更加适合电子产品小型化、轻量化发展趋势。
典型应用案例如下：
• 纳米晶共模电感铁芯具有优异的频率阻抗特性，广泛应用于电动汽车的电源、电驱、电控系统，光伏发电逆变器，风力发电变流器，家电的开关电源，以及一些工业电源的EMC治理等。
• 纳米晶功率变压器铁芯广泛用于各种高频工业电源，如纳米晶环形铁芯主要用于逆变焊机电源、感应加热设备电源、通信电源、UPS电源、X光机电源、激光电源、变频调速电源等。纳米晶矩形和C型铁芯主要应用于大功率电源，如电动机车牵引/辅助电源，直流变流器，静电除尘电源等。
• 纳米晶电流互感器铁芯主要用于电力传输，智能电表和漏电保护开关等。
| 编码 | 铁芯尺寸 | 成品尺寸 | 磁路长度 | 有效截面积 | 电感[μH] | μ×103 | 饱和电流[A] | |||||||||
| do*di*h [mm*mm*mm] |
OD*ID*H [mm*mm*mm] |
Le [cm] | Ae [cm2] | 10kHz | 100kHz | 10kHz | 100kHz | 10kHz | 100kHz | |||||||
| CC025 | 9.8*6.5*4.5 | 12*4.5*6.5 | 2.6 | 0.06 | ≥15.9 | ≥4.5 | ≥55 | ≥15 | 0.08 | 0.16 | ||||||
| CC169 | 12*8*4.5 | 14.2*6.5*7 | 3.1 | 0.07 | 20.22～39.03 | — | 72～139 | — | 0.1 | 0.2 | ||||||
| CC028 | 15*10*4.5 | 17*8.2*7.0 | 3.9 | 0.09 | ≥15.7 | ≥4.4 | ≥55 | ≥15 | 0.1 | 0.2 | ||||||
| CC184 | 25*16*10 | 28.*13.8*12.5 | 6.4 | 0.35 | 44.5～66.6 | 8.45～13.3 | 65～97 | 12～19 | 0.1 | 0.3 | ||||||
| CC103 | 25*20*10 | 27.8*17*13.5 | 7.1 | 0.2 | 20.8～41.2 | 5.37～11.1 | 60～119 | 15～32 | 0.3 | 0.6 | ||||||
| CC139 | 26*16*10 | 27.8*13.8*12.5 | 6.6 | 0.39 | ≥41.6 | ≥11.89 | ≥56 | ≥16 | 0.3 | 0.6 | ||||||
| CC191 | 30*20*10 | 33.5*17.8*13.5 | 7.9 | 0.39 | 44.9～84.3 | 10.2～20.6 | 72～135 | 16～33 | 0.2 | 0.5 | ||||||
| CC192 | 30*20*10 | 33.5*17.8*13.5 | 7.9 | 0.39 | 12.1～22 | 7.6～15.4 | 19～35 | 12～25 | 1.6 | 2.4 | ||||||
| CC193 | 30*20*10 | 33.5*17.8*13.5 | 7.9 | 0.39 | — | 2.0～4.0 | — | 3～7 | 8.8 | 9.3 | ||||||
| CC095 | 30*20*15 | 33.5*17.8*18.0 | 7.9 | 0.59 | 67.4～126.4 | 15.4～31.5 | 72～135 | 16～34 | 0.2 | 0.5 | ||||||
| CC039 | 31*19*15 | 34.5*16.6*18.4 | 7.9 | 0.7 | ≥62.9 | ≥17.9 | ≥56 | ≥15 | 0.2 | 0.5 | ||||||
| CC160 | 32*20*10 | 34.4*18*13 | 8.2 | 0.47 | 52.8～82.5 | 11～21 | 73～115 | 15～29 | 0.2 | 0.5 | ||||||
| CC041 | 33*23*15 | 35.5*21.1*17.7 | 8.8 | 0.59 | ≥46.8 | ≥13.3 | ≥56 | ≥15 | 0.2 | 0.5 | ||||||
| CC108 | 40*25*15 | 44.5*21.8*18.8 | 10.2 | 0.88 | 76～142 | 17.3～35.4 | 70～132 | 16～33 | 0.3 | 0.8 | ||||||
| CC102 | 40*32*15 | 44.5*29*19 | 11.3 | 0.47 | 37.5～70.2 | 8.6～17.5 | 72～135 | 16～34 | 0.4 | 0.7 | ||||||
| CC183 | 50*40*20 | 53.5*37*23.5 | 14.1 | 0.78 | 34.7～67.3 | 10.4～20.8 | 50～97 | 15～30 | 0.4 | 0.8 | ||||||
| CC197 | 65*50*25 | 68.2*46.8*28.7 | 18.1 | 1.46 | 50.8～99 | 15.2～30.6 | 49～98 | 14～31 | 0.9 | 1.8 | ||||||
| CC049 | 80*50*20 | 83.8*46.6*24.9 | 20.4 | 2.34 | ≥80.64 | ≥23.04 | ≥56 | ≥16 | 1.5 | 2.9 | ||||||
| CC050 | 80*50*25 | 83.5*47*29.2 | 20.4 | 2.93 | ≥100.8 | ≥28.8 | ≥56 | ≥16 | 1.5 | 2.9 | ||||||
| CC243 | 90*50*30 | 93.2*46.0*35 | 22 | 4.68 | ≥210 | — | ≥78.5 | — | 1.6 | 3.1 | ||||||
| CC051 | 90*60*20 | 95*55*24.5 | 23.6 | 2.34 | ≥62.4 | ≥19.9 | ≥50 | ≥19.9 | 1.7 | 3.3 | ||||||
| CC204 | 102*76*25 | 107.0*70.3*29.7 | 28 | 2.54 | ≥56.9 | — | ≥49.9 | — | 3.2 | 5.6 | ||||||
| CC116 | 102*76*25 | 107.0*70.3*29.7 | 28 | 2.54 | — | 3.24～6.24 | — | 2.8～5.5 | 40.9 | 43.3 | ||||||
| CC300 | 120*85*25 | 124.85*79.9*29.8 | 32.2 | 3.41 | ≥90 | ≥19 | ≥67.6 | ≥14.3 | 2 | 4.1 | ||||||
| CC052 | 120*85*25 | 124.85*79.9*29.8 | 32.2 | 3.41 | ≥110 | ≥21.3 | ≥82.6 | ≥16 | 2.3 | 4.5 | ||||||
| CC181 | 120*85*25 | 124.85*79.9*29.8 | 32.2 | 3.41 | 17.2～33.3 | 14.7～29.9 | 12.9～25 | 11～22.5 | 10.5 | 13.1 | ||||||
| CC055 | 120*85*25 | 124.85*79.9*29.8 | 32.2 | 4.1 | ≥89.4 | ≥25.5 | ≥67.1 | ≥19.1 | 2.2 | 4.3 | ||||||
| CC313 | 130*100*30 | 136.6*96.2*35.6 | 36.1 | 3.51 | ≥51 | ≥15.5 | ≥41.8 | ≥12.7 | 2.2 | 4.3 | ||||||
| CC303 | 130*100*30 | 136.6*96.2*35.6 | 36.1 | 3.51 | ≥87.9 | ≥18.3 | ≥72 | ≥15 | 2.6 | 5.1 | ||||||
| CC304 | 130*100*30 | 136.6*96.2*35.6 | 36.1 | 3.51 | 13.4～27.5 | 12.2～24.2 | 11～22.5 | 10～20 | 11.6 | 15.1 | ||||||
| CC056 | 160*130*25 | 164.6*125.2*30.1 | 45.6 | 2.93 | 16.1～31.3 | 10.4～20.3 | 20～38.8 | 12.9～25.2 | 11.9 | 16.1 | ||||||
| CC121 | 160*130*25 | 164.6*125.2*30.1 | 45.6 | 2.93 | 9.7～18.9 | 8.8～17 | 12～23.4 | 10.9～29 | 14.9 | 19 | ||||||
| CC126 | 160*130*25 | 164.6*125.2*30.1 | 45.6 | 2.93 | — | 2.26～4,36 | — | 2.8～5.4 | 67.4 | 68.9 | ||||||
| CC057 | 170*110*30 | 179*102*37 | 44 | 7.02 | ≥53 | ≥17.3 | ≥26.4 | ≥8.6 | 3 | 6.1 | ||||||
| CC311 | 190*160*25 | 198*152*31 | 55 | 2.93 | — | 1.8～4.2 | — | 2.7～6.3 | 81.3 | 83.1 | ||||||
| 共模扼流圈芯 |
|
|||||||||||||||
| 椭圆形磁芯表 | ||||||||||||||||
| 编码 | 铁芯尺寸 | 成品尺寸 | 磁路长度 | 有效截面积 | 电感[μH] | μ×103 | 饱和电流[A] | |||||||||
| b*d*t*h [mm*mm*mm] |
B*D*T*H [mm*mm*mm] |
Le [cm] | Ae [cm2] |
10kHz | 100kHz | 10kHz | 100kHz | 10kHz | 100kHz | |||||||
| CC307 | 255*95*20*20 | 261*100*25*25 | 55.6 | 2.65 | 13～30 | 4.7～12 | 10～53 | 7.8～20 | 17.9 | 22.9 | ||||||
| CC686 | 72*39*7*20 | 76*43*11*26 | 16.7 | 1.09 | 37.7～73 | 11.3～22.7 | 45.7～88.6 | 13.7～27.5 | 0.4 | 0.8 | ||||||
| 编码 | 规格 | 叠厚 | 最小窗口宽度 | 最小窗口长度 | 高度 | 宽度 | 长度 | 磁路长度 | 有效截面积 | 重量 |
| [mm*mm*mm*mm] | a[mm] | b[mm] | c[mm] | d[mm] | e[mm] | f[mm] | Le[cm] | Ae[cm2] | [kg] | |
| PC0187 | CNC-139*110*24*25 | 24 | 110 | 139 | 25 | 158 | 187 | 57.3 | 4.8 | 2.20 |
| PC0234 | CNC-121*51*27*35 | 27 | 51 | 121 | 35 | 105 | 175 | 42.8 | 7.6 | 2.40 |
| PC0441 | CNC-160*50*35*30 | 35 | 50 | 160 | 30 | 120 | 230 | 52.9 | 8.4 | 3.30 |
| PC0703 | CNC-152*24*18*18 | 18 | 24 | 152 | 18 | 60 | 188 | 40.8 | 2.5 | 0.78 |
| PC0933 | CNC-80*30*30*45 | 30 | 30 | 80 | 45 | 90 | 140 | 31.4 | 10.8 | 2.50 |
| PC1061 | CNC-100*45*30*30 | 30 | 45 | 100 | 30 | 105 | 160 | 38.4 | 7.2 | 2.10 |
| PC1091 | CNC-80*33*23*60 | 23 | 33 | 80 | 60 | 79 | 126 | 29.8 | 11.1 | 2.44 |
| PC1175 | CNC-145*60*55*110 | 55 | 60 | 145 | 110 | 170 | 255 | 58.2 | 48.4 | 21.00 |
| PC1193 | CNC-90*35*30*30 | 30 | 35 | 90 | 30 | 95 | 150 | 34.4 | 7.2 | 1.95 |
| PC1257 | CNC-80*33*23*35 | 23 | 33 | 80 | 35 | 79 | 126 | 29.8 | 6.4 | 1.40 |
| PC1258 | CNC-200*50*33*40 | 33 | 50 | 200 | 40 | 116 | 266 | 60.3 | 10.5 | 4.70 |
| PC1271 | CNC-75*28*25*35 | 25 | 28 | 75 | 35 | 78 | 125 | 28.4 | 7.0 | 1.50 |
| PC1308 | CNC-140*90*24*25 | 24 | 90 | 140 | 25 | 138 | 188 | 53.5 | 4.8 | 1.90 |
| PC1331 | CNC-90*35*20*20 | 20 | 35 | 90 | 20 | 75 | 130 | 31.3 | 3.2 | 0.74 |
| PC0746 | CNC-280*150*40*40 | 40 | 150 | 280 | 40 | 230 | 360 | 98.6 | 12.8 | 9.36 |
| PC0598 | CNC-75*30*30*30 | 30 | 30 | 75 | 30 | 90 | 135 | 30.4 | 7.2 | 1.62 |
| PC0766 | CNC-100*80*45*50 | 45 | 80 | 100 | 50 | 170 | 190 | 50.1 | 18.0 | 6.69 |
| PC0776 | CNC-16*8*6*12 | 6 | 8 | 16 | 12 | 20 | 28 | 6.7 | 0.6 | 0.03 |
| PC0811 | CNC-365*135*45*100 | 45 | 135 | 365 | 100 | 225 | 455 | 114.1 | 36.0 | 30.47 |
| PC0831 | CNC-340*140*51*135 | 51 | 140 | 340 | 135 | 242 | 442 | 112.0 | 55.1 | 45.75 |
| PC0867 | CNC-130*115*72*60 | 72 | 115 | 130 | 60 | 259 | 274 | 71.6 | 34.6 | 18.35 |
| PC0856 | CNC-103*42*27*90 | 27 | 42 | 103 | 90 | 96 | 157 | 37.5 | 19.4 | 5.40 |
| PC0898 | CNC-175*35*45*60 | 45 | 35 | 175 | 60 | 125 | 265 | 56.1 | 21.6 | 8.99 |
| PC0971 | CNC-70*20*16*25 | 16 | 20 | 70 | 25 | 52 | 102 | 23.0 | 3.2 | 0.55 |
| PC0973 | CNC-85*35*22*50 | 22 | 35 | 85 | 50 | 79 | 129 | 30.9 | 8.8 | 2.02 |
| PC1013 | CNC-182*100*65*150 | 65 | 100 | 182 | 150 | 230 | 312 | 76.8 | 78.0 | 44.43 |
| PC1034 | CNC-160*60*45*110 | 45 | 60 | 160 | 110 | 150 | 250 | 58.1 | 39.6 | 17.07 |
| PC1293 | CNC-250*150*85*220 | 85 | 150 | 250 | 220 | 320 | 420 | 106.7 | 149.6 | 118.37 |
| 编码 | 铁芯尺寸 | 磁路长度 | 有效截面积 | 封装方式 | 备注 |
| do*di*h [mm*mm*mm] |
Le[cm] | Ae[cm2] | |||
| M001 | 29*21*6.5 | 7.85 | 0.2 | Plastic casing | |
| M002 | 39.1*30.8*6.5 | 10.97 | 0.2 | Plastic casing | |
| M004 | 41.7*34.3*6.5 | 11.9 | 0.15 | Plastic casing | |
| M005 | 17*10*8 | 4.37 | 0.20 | Epoxy coating | |
| M006 | 17*10*10 | 4.34 | 0.27 | Epoxy coating | |
| M007 | 24.5*18.5*8 | 6.75 | 0.19 | Epoxy coating | |
| M008 | 29*21*15 | 7.85 | 0.46 | Epoxy coating | |
| M009 | 15.9*10.7*6.5 | 4.18 | 0.13 | Epoxy coating | |
| M019 | 22*17.1*6 | 6.1 | 0.12 | Plastic casing | |
| M025 | 26.2*21*7 | 7.41 | 0.14 | Plastic casing | |
| M027 | 37.9*30.8*6.5 | 10.8 | 0.18 | Plastic casing | |
| M032 | 25*17*8 | / | / | Plastic casing | Amorphous+Nanocrystalline |
| M033 | 30*20*8 | / | / | Plastic casing | Amorphous+Nanocrystalline |
| E001 | 23*14.8*18 | 5.96 | 0.58 | Plastic casing | |
| E002 | 23*16.5*20 | 6.26 | 0.14 | Plastic casing | |
| E003 | 20*13*18 | 5.26 | 0.49 | Plastic casing | |
| E004 | 14.3*9.9*10 | 3.8 | 0.176 | Plastic casing | |
| E005 | 23*13.5*15 | 5.73 | 0.57 | Plastic casing | |
| E006 | 32*17*12 | 7.69 | 0.72 | Plastic casing | |
| E007 | 15*10*20 | 3.925 | 0.4 | Plastic casing | |
| E008 | 23*12.2*30 | 5.73 | 1.14 | Plastic casing |
| 编码 | 铁芯规格 | 成品规格 | 磁路长度 | 有效截面积 | 重量 | 铁损 (20kHz,0.5T) |
电感 | 护盒 | 孔 | |||||
| do*di*h [mm*mm*mm] |
OD*ID*H [mm*mm*mm] |
Le [cm] |
Ae [cm2] |
m [g] |
Pcm [W/kg) |
AL [μH] |
颜色 | 形状 | 连接 |
支撑 |
孔 | 孔径 [mm] |
孔距离 [mm] |
|
| PC0157 | ONL-80*50*20 | 85*44*24 | 20.41 | 2.16 | 317 | ≤30 | ≤60 | black | round | top | 2 | 2 | 5 | 72 |
| PC1243 | ONL-80*50*20 | 85*44*24 | 20.41 | 2.16 | 317 | — | [70,103] | black | round | top | 2 | 2 | 5 | 72 |
| PC0032 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | ≤75 | black | round | top | 2 | 4 | 5 | 72.5*18 |
| PC0159 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | ≤75 | black | round | top | 2 | 2 | 5 | 72.5 |
| PC0307 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | ≥65 | black | round | top | 2 | 4 | 5 | 72.5*18 |
| PC0320 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | [55,65] | black | round | top | 2 | 4 | 5 | 72.5*18 |
| PC0437 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | [50,80] | black | round | top | 2 | 4 | 5 | 72.5*18 |
| PC0557 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | [50,60] | black | round | top | 2 | 2 | 5 | 72.5 |
| PC0631 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | [60,110] | black | round | top | 2 | 4 | 5 | 72.5*18 |
| PC0738 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | ≥40 | black | round | top | 2 | 4 | 5 | 72.5*18 |
| PC0756 | ONL-80*50*25 | 85*44*29.5 | 20.41 | 2.6 | 420 | ≤30 | ≥65 | black | round | top | 2 | 2 | 5 | 72.5 |
| PC0040 | ONL-100*60*20 | 105*54*26 | 25.12 | 2.9 | 540 | ≤30 | ≤65 | black | round | top | 2 | 2 | 5 | 90 |
| PC0337 | ONL-100*60*20 | 105*54*26 | 25.12 | 2.9 | 540 | ≤30 | ≥65 | black | round | top | 2 | 2 | 5 | 90 |
| PC0514 | ONL-100*60*20 | 105*54*26 | 25.12 | 2.9 | 540 | ≤30 | [50,60] | black | round | top | 2 | 2 | 5 | 90 |
| PC0760 | ONL-100*60*20 | 105*54*26 | 25.12 | 2.9 | 540 | ≤28 | ≥43 | black | round | top | 2 | 2 | 5 | 90 |
| PC1043 | ONL-100*60*20 | 105*54*26 | 25.12 | 2.9 | 540 | ≤30 | [43,70] | black | round | middle | 2 | 2 | 5 | 90 |
| PC1083 | ONL-100*60*20 | 105*54*26 | 25.12 | 2.9 | 540 | ≤25 | [43,65] | green | round | top | 2 | 2 | 5 | 90 |
| PC1213 | ONL-100*60*20 | 105*54*26 | 25.12 | 2.9 | 540 | ≤30 | ≥36 | black | round | top | 2 | 2 | 5 | 90 |
| PC0086 | ONL-105*60*30 | 109*57*35 | 25.91 | 4.9 | 940 | ≤27 | ≤107 | black | round | middle | 2 | 4 | 5 | 71*24 |
| PC0087 | ONL-105*60*30 | 109*57*35 | 25.91 | 4.9 | 940 | ≤30 | ≤107 | black | round | middle | 2 | 4 | 5 | 71*24 |
| PC0371 | ONL-105*60*30 | 109*57*35 | 25.91 | 4.9 | 940 | ≤30 | ≥65 | black | round | middle | 2 | 4 | 5 | 71*24 |
| PC0438 | ONL-105*60*30 | 109*57*35 | 25.91 | 4.9 | 940 | ≤30 | [60,100] | black | round | middle | 2 | 4 | 5 | 71*24 |
| PC1387 | ONL-105*60*30 | 109*57*35 | 25.91 | 4.9 | 940 | ≤30 | [70,120] | black | round | middle | 2 | 4 | 5 | 71*24 |
| PC0049 | ONL-120*60*30 | 125*57*35 | 28.26 | 6.5 | 1310 | ≤30 | [77,90] | black | round | middle | 2 | 4 | 5 | 73*23.5 |
| PC0093 | ONL-120*60*30 | 125*57*35 | 28.26 | 6.5 | 1310 | ≤30 | ≥72 | black | round | middle | 2 | 4 | 5 | 73*23.5 |
| PC0425 | ONL-120*60*30 | 125*57*35 | 28.26 | 6.5 | 1310 | ≤30 | [70,100] | black | round | middle | 2 | 4 | 5 | 73*23.5 |
| PC0883 | ONL-120*60*30 | 125*57*35 | 28.26 | 6.5 | 1310 | ≤30 | ≥55 | black | round | middle | 2 | 4 | 5 | 73*23.5 |
| PC1145 | ONL-120*60*30 | 125*57*35 | 28.26 | 6.5 | 1310 | ≤30 | [95,105] | black | round | middle | 2 | 4 | 5 | 73*23.5 |
| PC0057 | ONL-120*70*25 | 125*67*30 | 29.83 | 4.5 | 960 | ≤30 | ≤86 | black | round | middle | 2 | 4 | 5.5 | 74*18.5 |
| PC0060 | ONL-120*70*30 | 125*67*35 | 29.83 | 5.4 | 1160 | ≤30 | — | black | round | middle | 2 | 4 | 5.5 | 75*24.5 |
| PC0062 | ONL-120*70*30 | 125*67*35 | 29.83 | 5.4 | 1160 | ≤30 | ≤103 | black | round | middle | 2 | 4 | 5.5 | 75*24.5 |
| PC0066 | ONL-130*80*40 | 136*77*45 | 32.99 | 7.8 | 1852 | ≤27 | ≤120 | black | round | middle | 4 | 6 | 80.5*26 | |
| PC0070 | ONL-130*80*40 | 136*77*45 | 32.99 | 7.8 | 1852 | ≤30 | ≤120 | black | round | middle | 4 | 6 | 80.5*26 | |
| PC0074 | ONL-130*80*50 | 136*75*55 | 32.99 | 9.75 | 2315 | ≤30 | ≤150 | black | round | middle | 4 | 6 | 80.5*35.5 | |
| PC0246 | ONL-108*62*25 | 108*62*25 | 26.7 | 4.48 | 851 | ≤110 | — | Varnished | / | / | / | / | / | — |
| PC1006 | ONL-168*90*120 | 168*90*120 | 40.52 | 34.2 | 10241 | ≤30 | — | Varnished | / | / | / | / | / | — |
 |
 |
 |
 |
 |
 |
|||||||||
